The Evolution of Drafting: The Need for High-Efficiency CAD Software for Engineering Profesionals

In the modern engineering landscape, the demands placed on drafting professionals, plant designers, and structural detailers have never been higher. Project timelines are continually shrinking, while the requirements for accuracy, strict industry compliance, and shop-ready fabrication drawings have only increased. Relying on manual geometry calculations, standard disconnected block libraries, and manual scaling introduces a significant risk of human error and severely slows down project delivery.

To remain competitive, engineering firms require more than just basic computer-aided design platforms. They need intelligent, parametric drafting tools that can automate traditionally time-intensive tasks. This is where specialized engineering add-ons bridge the gap between standard CAD environments and full-scale production. By replacing thousands of static legacy blocks with dynamic, rule-based engines, engineers can radically streamline their detailing workflows, eradicate manual drafting bottlenecks, and ensure that all components conform to rigorous global standards.

Introducing Mech-Q: A Robust Suite of Precision CAD Utilities

Developed by ASVIC, Mech-Q is a versatile and high-efficiency CAD software suite offering specialized engineering modules for mechanical, structural, piping, and HVAC ducting design. Engineered specifically for professionals who demand technical accuracy and accelerated project delivery, Mech-Q combines speed and power into an intuitive, graphical interface.

Instead of forcing users to adopt entirely new, bulky, and exorbitantly expensive standalone platforms, Mech-Q embeds directly into your existing CAD host environment. This approach preserves your established drafting interface, custom workspaces, and keyboard shortcuts, eliminating the steep learning curves and file-conversion friction that often plague software transitions. Whether you need to quickly generate a complex piping isometric, detail a multi-flight structural stair, or layout a bulk material handling conveyor, Mech-Q provides the parametric tools necessary to produce intelligent two-dimensional drawings and three-dimensional production models effortlessly.

Technical Advantages: Why Engineering Designers Use Mech-Q

Mech-Q stands out from the competition by offering a highly tailored experience that maximizes drafting productivity. Here are the core technical advantages that make it an indispensable tool for engineering teams:

1. Native CAD Integration & Zero Workflow Disruption

Mech-Q runs as a native extension within your preferred drafting software. It integrates seamlessly into platforms like AutoCAD, BricsCAD, and IntelliCAD. Because it operates within your existing software ecosystem, it completely eliminates file-conversion lag and avoids the high costs associated with migrating to entirely new plant design platforms. You are supercharging your current CAD licenses rather than abandoning them.

2. Parametric Precision & Mitigated Design Risk

Manual structural detailing and piping routing introduce significant risks of error. Mech-Q mitigates this by utilizing intelligent, fully parametric algorithms. Components, profiles, and configurations automatically conform to rigorous global standards, including ANSI, ISO, and DIN. The software automatically handles geometric calculations and applies precise dimensions and fabrication clearances, ensuring strict drawing office compliance.

3. Scalable Architecture & Optimized Software ROI

Engineering leads can align their software expenditure directly with their project pipeline. Mech-Q operates on a modular deployment model, allowing firms to license only the discipline-specific toolsets required for immediate contract scopes. Whether a project calls for just Piping, a combination of Piping and Ducting, or the full mechanical and structural suite, the scalable architecture ensures optimized software Return on Investment (ROI).

4. Automated Bill of Materials (Auto-BOM)

One of the most time-consuming aspects of engineering drafting is manually tallying parts and materials. Across its modules, Mech-Q features a fully customizable Auto-BOM generation# CAD Software for Engineers: A Comprehensive Guide to Mech-Q

Drafting and designing complex engineering systems is an intricate process that demands precision, speed, and industry-standard compliance. While standard CAD platforms like AutoCAD or BricsCAD offer exceptional generic drafting environments, they lack the specialized, out-of-the-box tools required for heavy-duty mechanical, piping, HVAC, and structural engineering. This forces engineers to spend countless hours manually drawing standard components, managing block libraries, and manually calculating bills of materials.

This is where specialized engineering add-ons bridge the gap. Mech-Q, developed by ASVIC, is one of the most robust, comprehensive, and widely used engineering CAD software suites available. It transforms a standard CAD environment into a powerhouse for engineers, draftspersons, and designers.

This guide provides an in-depth look into CAD software for engineers, focusing on how the Mech-Q suite accelerates drafting, enforces standardization, and drastically reduces project turnaround times.

The Limitations of Vanilla CAD in Engineering

To understand the value of engineering-specific CAD software, we must first look at the limitations of "vanilla" or out-of-the-box CAD systems.

When a piping engineer needs to draw a complex pipe run with specific flanges, valves, and reducers in standard AutoCAD, they typically have two options:

Draw each component manually using basic lines, arcs, and circles.
Search through vast, often disorganized libraries of blocks, insert them, scale them, and carefully align them to the pipe run.

Both methods are incredibly time-consuming and prone to human error. Furthermore, if a design changes—which it inevitably does—updating these manual drawings is a tedious process. There is also the administrative burden: manually counting every valve, elbow, and flange to generate a Bill of Materials (BOM) is a slow process that easily leads to procurement errors and project delays.

Enter... Mech-Q: Purpose-Built CAD for Engineers

Mech-Q is an add-on software suite that integrates directly into your existing CAD software. Rather than forcing you to learn a completely new, proprietary, and expensive CAD platform, Mech-Q lives inside the interface you already know.

It is divided into four primary modules, each tailored to a specific engineering discipline:

Piping Design
Mechanical Drafting
HVAC (Ducting)
Structural Steel

Let's explore each module in detail to understand how purpose-built engineering software transforms the design workflow.

1. The Mech-Q Piping Module

The Piping module is arguably the most powerful component of the Mech-Q suite, designed specifically for process engineers, plant designers, and plumbing professionals. It provides an extensive array of pipes, pipe fittings, flanges, and valves, allowing users to draw complex systems in a fraction of the time.

Comprehensive Fitting and Valve Libraries

The piping module includes a massive database of standard components. You no longer need to draw or import blocks for standard parts. The software includes parametric generators for:

Flanges: Slip-on, weld neck, blind, threaded, and socket weld flanges.
Valves: Gate, globe, check, ball, butterfly, and control valves.
Fittings: Elbows (90-degree, 45-degree, long and short radius), tees, crosses, and reducers (concentric and eccentric).
Multiple Drafting Modes: Orthographic, Isometric, and 3D

One of the core strengths of the Mech-Q Piping module is its flexibility in representation. Engineers can draft in:

Orthographic (2D): Single-line and double-line representations for standard plan and elevation views.
Isometric: Automatically generates isometric piping spools for fabrication, complete with correct isometric planes and snaps.

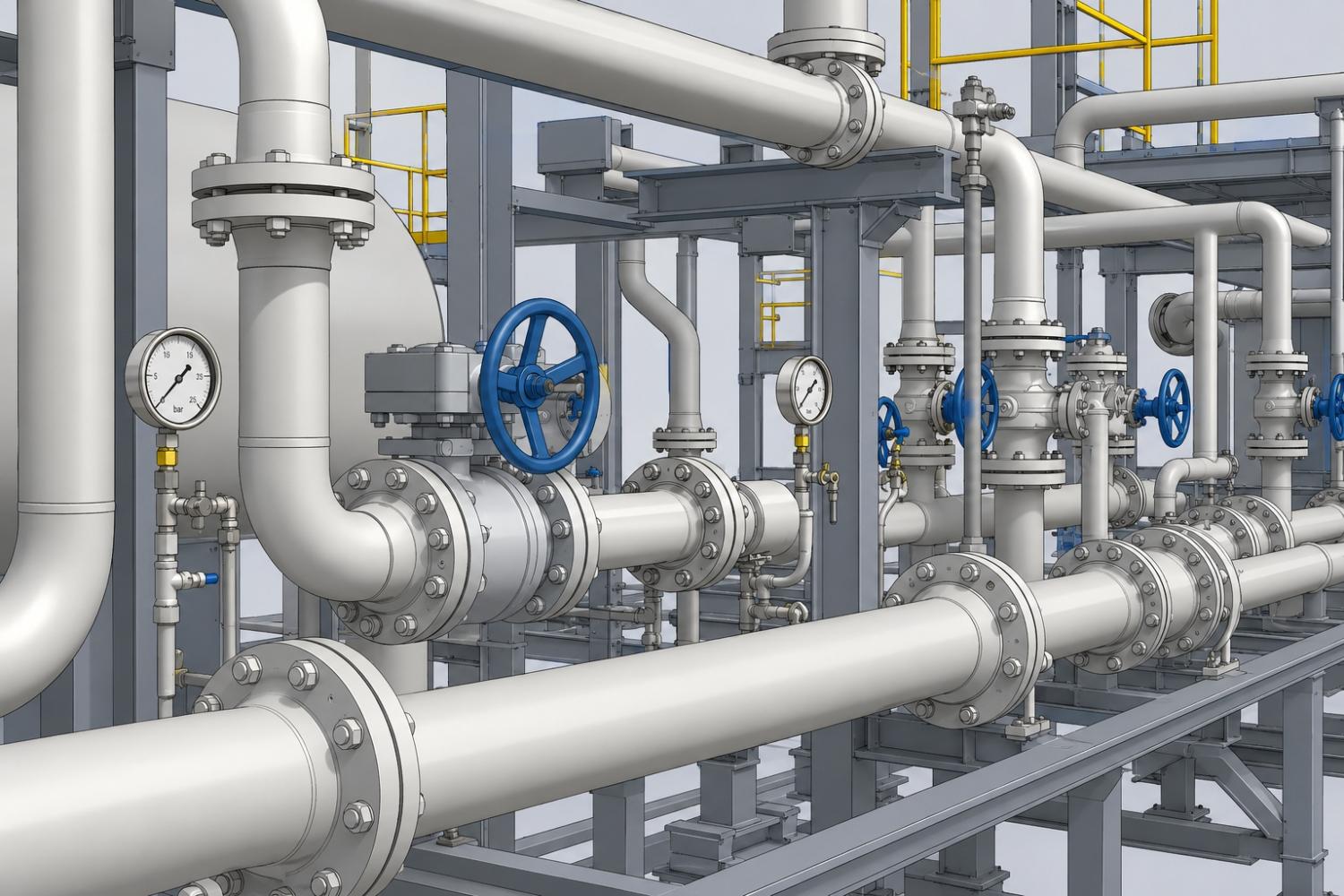

3D Solid: Generates full 3D solid models of the piping system, which is invaluable for clash detection, visualization, and integration into larger plant models.
P&ID (Piping and Instrumentation Diagram) Tools

Before physical piping is routed, engineers must define the process logic. Mech-Q includes a comprehensive P&ID module equipped with industry-standard symbols for vessels, pumps, instruments, valves, and flow lines. The symbols are intelligent, snapping to lines and automatically breaking the line upon insertion, significantly speeding up schematic generation.

Auto-Routing and Smart Placement

Drawing a pipe run in Mech-Q is highly automated. When you draw a pipe, the software automatically inserts the correct elbows at corners. If you place a valve on a line, Mech-Q breaks the pipe, inserts the valve, and adds the mating flanges and gaskets automatically based on the chosen standard (e.g., ANSI, DIN).

2. The Mech-Q Mechanical Module

For mechanical engineers, machine builders, and tool designers, the Mechanical module eliminates the repetitive drafting of standard machine parts. Mechanical design relies heavily on standardized components like fasteners, bearings, and transmission elements.

Fasteners and Hardware

Drawing a simple bolt assembly (bolt, nut, and washer) manually can take several minutes. Mech-Q reduces this to seconds. The module includes an exhaustive library of metric and imperial fasteners:

Hex head bolts, socket head cap screws, and set screws.
Nuts, flat washers, and spring washers.

These can be generated in 2D (plan, elevation) or fully modeled in 3D. The parametric engine allows you to simply select the thread size and length, and the software draws it perfectly to scale.

Power Transmission and Motion Components

Designing gearboxes, conveyors, or drivetrains requires precise geometry. Mech-Q provides parametric generators for:

Gears: Spur gears, bevel gears, and rack and pinion systems. You input the number of teeth, module/pitch, and pressure angle, and the software generates the precise involute gear profile.
Bearings: A comprehensive library of deep groove ball bearings, roller bearings, and thrust bearings based on standard SKF/FAG catalogs.
Shafts: A dynamic shaft generator that allows you to easily design stepped shafts, automatically adding chamfers, fillets, retaining ring grooves, and keyways.
Springs and Utility Tools

The module also includes specialized tools for drawing compression, extension, and torsion springs, as well as utility programs for calculating tolerances, fits, and surface finish symbols, ensuring that mechanical drawings are ready for manufacturing and fully compliant with ISO or ANSI drafting standards.

3. The Mech-Q HVAC & Ducting Module

Designing heating, ventilation, and air conditioning systems requires routing complex ductwork through tight architectural spaces. The Mech-Q HVAC module is designed to make 2D and 3D duct routing intuitive and fast.

Duct Shapes and Transitions
- The software supports all standard ducting profiles:
- Rectangular Ducting
- Round Ducting
- Flat Oval Ducting

The true power of this module lies in its transition generation. In real-world HVAC design, ducts constantly change shape and size to clear obstacles or maintain air velocity. Mech-Q automatically generates complex transitions, such as square-to-round, concentric reducers, eccentric reducers, and offset transitions.

Bends, Branches, and Accessories Routing ductwork involves numerous fittings. The HVAC module allows you to easily place:
- Elbows and bends with customizable throat radii.
- Tees, wyes, and cross branches.
- Dampers, diffusers, flexible ducting, and acoustic turning vanes.

Like the piping module, the HVAC tools can generate single-line schematics for preliminary layouts, double-line 2D for construction documents, and full 3D models for BIM coordination and clash detection with structural and plumbing elements.

Auto-BOM for Fabrication

Duct fabrication requires highly accurate material lists. Mech-Q automatically tracks the length of straight duct, the number of fittings, and the specific sizes of transitions, compiling this data into a Bill of Materials that can be sent directly to sheet metal fabricators.

4. The Mech-Q Structural Module

For civil and structural engineers, draftspersons, and steel detailers, the Structural module provides a vast library of standardized steel shapes and automated detailing tools.

Standardized Steel Profiles

Mech-Q includes comprehensive databases of steel shapes from major global standards, including AISC (American), BHP (Australian), CISC (Canadian), DIN (German), and RSA (South African).

Engineers can instantly insert:

I-Beams (W, S, M, HP shapes)
Channels (C, MC shapes)
Angles (Equal and Unequal leg)
Structural Tees
Hollow Structural Sections (RHS, SHS, CHS)

These profiles can be drawn in cross-section, elevation, or full 3D, making it incredibly easy to frame up a steel structure or detail a specific connection.

Automated Stairs, Ladders, and Handrails

Detailing industrial access platforms is traditionally a time-consuming task. Mech-Q automates this entirely.
Stair Generator: Simply input the rise, run, and width, and the software will generate the stair stringers, treads, and handrails.
Ladders: Quickly generate caged and uncaged industrial safety ladders to exact OSHA or regional safety specifications.
Handrails: Draw continuous handrails along platforms with automatic stanchion placement.
Roof Trusses and Bracing

The structural module also includes utilities for generating standard roof trusses (Howe, Pratt, Warren) by simply defining the span, pitch, and web configurations. It also provides fast detailing tools for inserting gusset plates, cleat angles, and cross-bracing.

Key Benefits of Using Mech-Q CAD Software

Investing in specialized CAD software like Mech-Q yields substantial returns in productivity, accuracy, and project management. Here are the core benefits:

1. The Automated Bill of Materials (BOM)

Perhaps the most significant time-saver in Mech-Q is the automated BOM. Every component inserted via the Mech-Q menus is tagged with intelligent data. At any point in the design process, you can generate a BOM with a single click. The software scans the drawing, counts the flanges, measures the pipe/duct lengths, tallies the bolts, and generates a formatted table directly on the drawing or exports it to Excel/CSV for procurement. This eliminates human counting errors and saves hours of administrative work.

2. Drastic Reduction in Drafting Time

By replacing manual line drawing and block hunting with parametric dialog boxes, tasks that used to take hours can be completed in minutes. A complex flanged pipe manifold that might take an hour to draw from scratch can be generated in less than five minutes using Mech-Q's automated routing and fitting insertion.

3. Ease of Use and Minimal Learning Curve

Unlike heavy, standalone 3D plant design software that requires weeks of training (and costs tens of thousands of dollars), Mech-Q is incredibly user-friendly. Because it runs inside the CAD environment you already know, the learning curve is minimal. The interface relies on simple, visual dialog boxes. If you know how to use basic CAD commands, you can start using Mech-Q productively on day one.

4. Lightweight and Fast

Many modern 3D BIM and engineering software packages are incredibly resource-heavy, requiring massive computing power to run smoothly. Mech-Q remains lightweight. It generates clean, standard DWG entities (lines, arcs, blocks, and 3D solids) that do not bloat your file sizes or slow down your workstation. Drawings created with Mech-Q can be opened by anyone with standard CAD software, ensuring seamless collaboration with clients and contractors who may not have the add-on installed.

Platform Compatibility

A major advantage of Mech-Q is its broad compatibility. Engineers are not forced to abandon their preferred CAD engine. Mech-Q seamlessly integrates with a wide variety of standard .DWG based CAD platforms, including:

Supported CAD Platform Notes

AutoCAD Full support for full versions of AutoCAD.
BricsCAD Fully supported, highly recommended DWG alternative.
IntelliCAD Supports IntelliCAD-based platforms (e.g., ProgeCAD, CMS).
ZWCAD / GstarCAD Full integration with popular AutoCAD clones.
AViCAD ASVIC's own standalone CAD platform with Mech-Q built directly in.

Who Should Use Mech-Q?

Mech-Q is designed for a broad spectrum of technical professionals. It is the ideal software solution for:

Mechanical Engineers & Draftspersons: Designing custom machinery, material handling equipment, and specialized tooling.
Process & Plant Engineers: Routing complex piping systems for water treatment plants, oil and gas facilities, and chemical processing plants.
HVAC Contractors & Designers: Creating accurate ductwork layouts and fabrication drawings for commercial and industrial buildings.
Structural Detailers: Drafting steel frames, access platforms, and stairways for industrial architecture.
Small to Medium Engineering Firms: Firms that require the power of high-end plant design software but cannot justify the exorbitant licensing fees and training time associated with enterprise-level 3D suites.

Conclusion

In the competitive world of engineering and design, efficiency and accuracy are paramount. Relying on basic CAD tools for complex engineering drafting is a bottleneck that modern firms cannot afford.

Software like Mech-Q represents the perfect balance of power, affordability, and ease of use. By providing specialized modules for Mechanical, Piping, HVAC, and Structural design, along with powerful automated Bill of Materials generation, Mech-Q transforms standard CAD into a dedicated engineering workstation. Whether you are generating a quick 2D P&ID schematic or modeling a full 3D industrial pump station, CAD add-ons like Mech-Q give engineers the tools they need to focus on design rather than tedious drafting.
