Mech-Q Piping & Structural - Database Editor

The Database Editor allows you to edit the data files used by the Mech-Q Piping & Mech-Q Structural modules.

Start the Database Editor via the Mech-Q "Maintenance" (or "Management") menu.

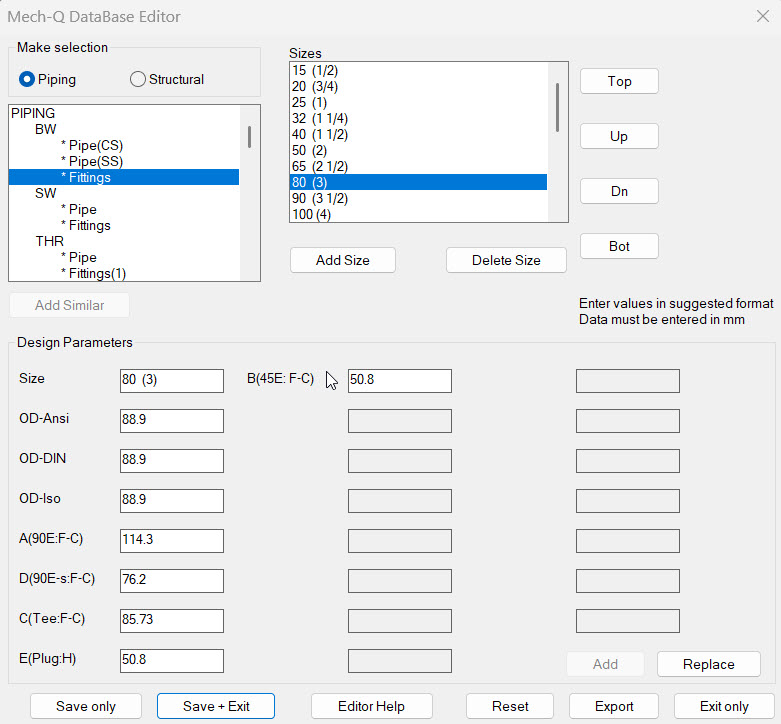

Database Editor - Mech-Q PIPING

Select "Piping" - Top left of dialogue to access the Mech-Q Piping - Database Editor

What can you do:

Edit Pipe and Pipe Fittings dimensions.
Add or Remove Pipe sizes or Fittings dimensions
Create a new Pipe/Fittings system - Similar in design to an existing Pipe/Fitting system in Mech-Q
Export edited files

Database Editor - Mech-Q STRUCTURAL

Select "Structural" - Top left of dialogue to access the Mech-Q Piping - Database Editor

What can you do:

Edit Structural shapes dimensions.
Add or Remove Structural Shapes
Export edited files

×
