CustomAir

ASVIC's CuctomAir Duct Systems Module is a comprehensive collection of utilities for drawing SEMCO Inc., CustomAir Duct Systems components (2-D only).

This includes:

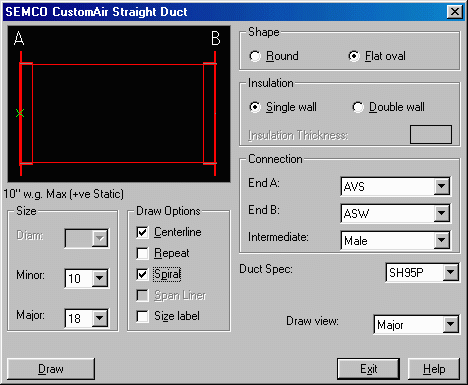

Straight Duct (Spiral Round & Oval)

  • Sizes from 3"-76" (+ customised)
  • Round or Flat Oval
  • Single or double wall insulation
  • Several End connections option
  • Connectors at predefined intervals
  • Several draw options

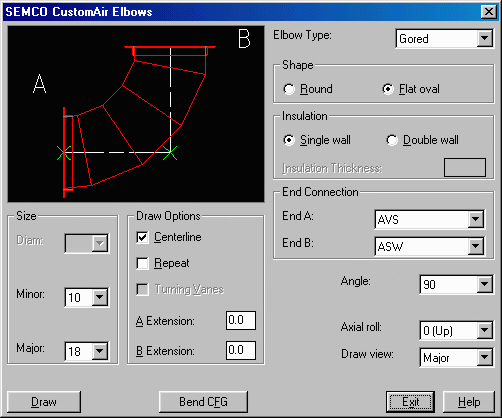

Elbows & Bends

  • Sizes from 3"-76" (+ customised)
  • Round or Flat Oval
  • Types include:
  • Gored
  • Square Throat
  • Die-Cast
  • Pleated
  • 45 deg/90deg
  • Several End connections option
  • Several draw options

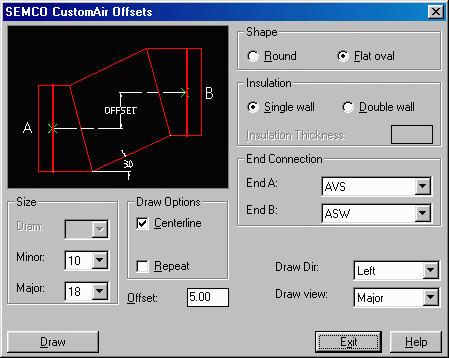

Offsets

  • Sizes from 3"-76" (+ customised)
  • Round or Flat Oval
  • Several End connections option
  • Several draw options
  • Single or double wall insulation
  • Single, Double & Cross fittings....

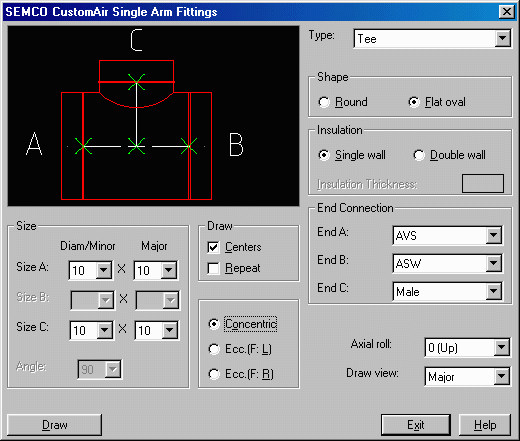

Tees, Laterals, Conical Laterals, Combination Tees....

  • Sizes from 3"-76" (+ customised)
  • Round or Flat Oval
  • Several End connections option
  • Several types included:
  • Single Tee
  • Double tees
  • Crosses
  • Laterals
  • Conical lateral
  • Combination tees
  • Reducing or same size
  • Single or double wall insulation
  • Several draw options.

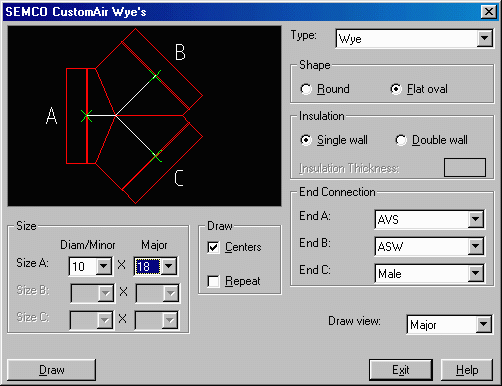

Wyes

  • Sizes from 3"-76" (+ customised)
  • Round or Flat Oval
  • Several End connections option
  • Types included:
  • Wyes/Reducing wyes
  • Single or double wall insulation
  • Several draw options.

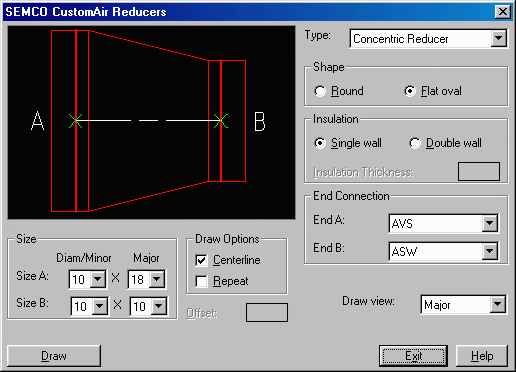

Reducers & Transitions

  • Sizes from 3"-76" (+ customised)
  • Round or Flat Oval
  • Several End connections option
  • Several Types included:
  • Round - Oval
  • Round - Round
  • Oval to Oval
  • All types: Concentric/Eccentric
  • Single or double wall insulation
  • Several draw options.

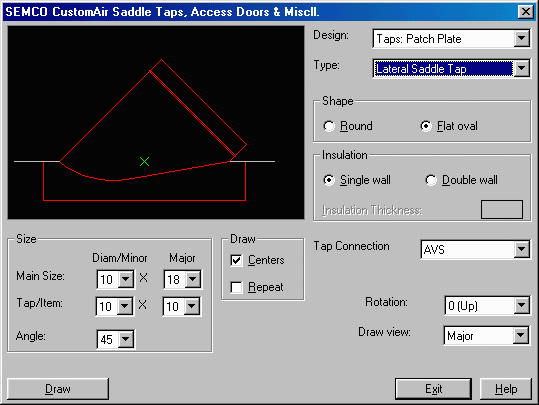

Saddle Taps

  • Sizes from 3"-76" (+ customised)
  • Round or Flat Oval
  • Several End connections option
  • Several Types included:
    • Straight
    • Lateral
    • Conical
    • Combinations
  • Several designs
  • Single or double wall insulation
  • Several draw options.

Adaptors, Couplings, Bellmounts, Access Doors, Volume dampers....

  • Full range of sizes (+ customised)
  • Round or Flat Oval
  • Several designs
  • Several draw options.


All fittings on the CustomAir Duct Systems catalogue are included - for the full range of standard sizes (plus: custom sizes) end connections and various options. Both round and flat oval duct systems fittings are included in both single wall and double (insulated) wall type.
Full customisable: Units (Metric/English), user defined layer system, text size and font:

End connections options include:

  • Male
  • Female
  • Angle Rings
  • AccuFlange
  • SpiralMate
  • OvalMate
  • DuctMate



Compatability Note

CustomAir setup, supports AutoCAD 2006 to 2014 only
For other AutoCAD versions CustomAir install location must be added manually to the AutoCAD search path and the CustomAir menu must be loaded manually.

Other ducting products suggested:  Mech-Q HVAC Ducting
