NEPEAN-Weldlok

Our solutions suit professionals that work with NEPEAN-Weldlok products



CAD compatibility

Our engineering suite will run inside a wide range of CAD software including AutoCAD, Bricscad, CADianprogeCAD and several other IntelliCAD versions. (We do not support AutoCAD LT)


NEPEAN-Weldlok is available for both 32 and 64 bit systems and all versions of Windows - Incluing 7, 8 and 10



Start Drawing like a champion

If you are like most draftspersons you know how hard it is to meet deadlines. Automating your workflow is essential in order to keep up with hectic schedules. Our engineering tools makes it really easy to get going. Even non-technical users will be able to easily use our menus and dialogs without having to draw a single line.



The NEPEAN-Weldlok software module is utilised for the drawing of structural steel drawings. It includes steel shapes from around the world, Draw beams & columns with ease,  beam-connections, stairs, ladders, bracing, hand railing, frames, welding symbols, beam loading designer...more details

5 Good reasons to choose NEPEAN-Weldlok

Simplicity – NEPEAN-Weldlok offers a near Zero learning curve. It provides the most easy transition into automated CAD drafting.
Affordability – NEPEAN-Weldlok is easy on your wallet. Why spend thousands more on software when you can get the same job done with NEPEAN-Weldlok? It's really got everything you'll need, built right into the software.
Quality – NEPEAN-Weldlok makes you look great. You'll produce professional looking drawings with little or no effort. And your clients will never know it…
Accessibility – NEPEAN-Weldlok is filled to the brim. You'll find hundreds of exclusive tools and functions throughout the NEPEAN-Weldlok suite. It's not just an Engineering Tool. We've also included drafting routines, beam calculators and many more utilities all organized and ready to use.
Flexibility – NEPEAN-Weldlok is fun to use. It has an intuitive dialog interface – which means you won't have to hunt for symbols and blocks anymore. You'll be able to get the job done faster and easier too.





Download a Free DEMO

Piping Software CAD Piping Software Piping Software for AutoCAD Ducting Software HVAC Ducting Software CAD Duct Software Ducting Software for AutoCAD Structural Software Structural CAD Software Structural detailing software Structural Software for AutoCAD Mechanical Software Mechanical CAD Software Mechanical Software for AutoCAD BOM Software AutoCAD Applications AutoCAD add-on Software  CAD Blocks Free CAD Free Software Free Download

Reviews

No reviews exist for this item

Be the first to review this item

Demo Download    Buy

NEPEAN-Weldlok Structural CAD Software

The NEPEAN-Weldlok Structural Detailing utilities for the drawing of structural steel members. It includes steel shapes (beams, columns and NEPEAN-Weldlok Structural Steel Shapesmiscelleneous), beam-connections, stairs, ladders, bracing, hand railing, frames, welding symbols, beam loading designer and much more.

Steel shapes include: AISC, BHP, CISC, DIN, RSA, JIS, IS, Chinese...The module draws both in 2D & 3D and generates a weighted auto-BOM Some modules include auto-dimensioning of compoments to fabrication details.

NEPEAN-Weldlok works with several CAD packages including: AutoCAD and IntelliCAD:



Structural Steel detailing is now ease using the NEPEAN-Weldlok Structural Detailing modules.

The NEPEAN-Weldlok Structural Steel design add-on is both customizable and easy to learn.

The software supports both Metric & English (Imperial) Units.

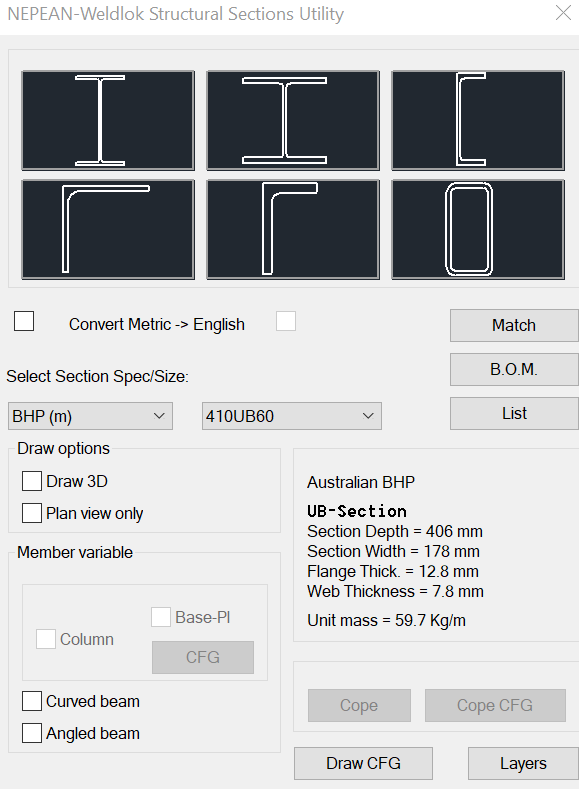

Steel Shapes & Beams

Draws in both 2D & 3D and includes Auto-BOM with weighted BOM (fully customizable). This structural steel shape routine supports data listing with a pick & match option. Layers are fully customizable. Curved beam option also available. Annotates shapes and beams as needed.

Main Features:

  • 2D & 3D Capability
  • Auto-BOM with weighted BOM (fully customisable)
  • Data listing, pick & match option
  • Fully customisable layers
  • Curved beam option
  • Annotation option

Standard Steel Shapes and sizes included:Mech-Q Structural BOM

Metric:

  • Australian (BHP)
  • European (DIN)
  • British Standard (BS)
  • Canadian (CISC)
  • South African (RSA)
  • Japanese (JIS)
  • Indian (IS)
  • Chinese

English:

  • US (AISC/ASTM)
  • Canadian (CISC)

ASVIC can customize this utility for other standard steel shapes

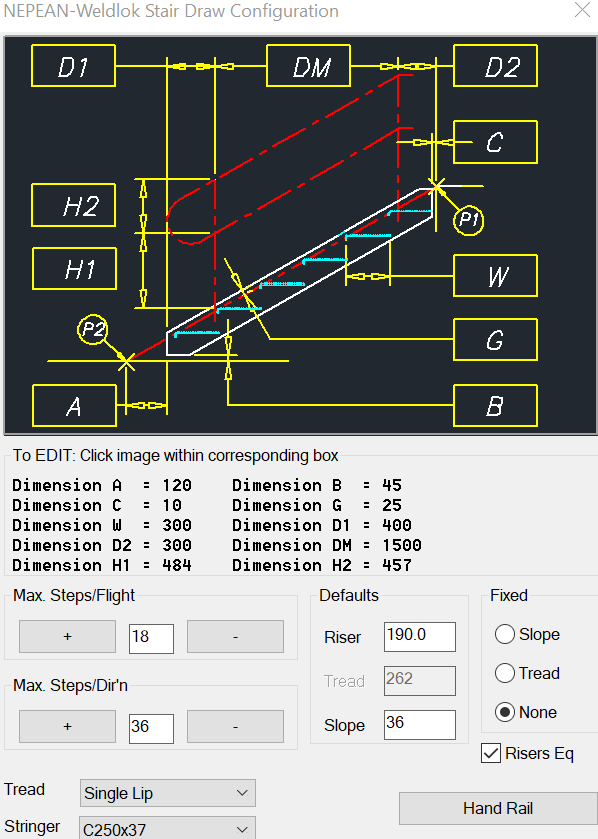

Structural Stairs Utility

Structural Stairs Utility will draw stairs to the configuration set by the user. The routine will also draw Single-flight and multi-flight stairs in Front, Plan and End views and then add the main Dimensions and Stair Data as required. Handrail outline can also be included.NEPEAN-Weldlok Steel Stairs Software

Stringer Detail - With auto-dimensioning for fabrication. Use the program design feature to draw the stairs - then by simply picking the stairs stringer, it will be auto-detailed for you.

Also includes concrete Pan Style stair tread. The user has full control on the stairs design parameters, including stringer and tread sizes, slope, width, stair flights configuration.

Main Features:

  • Draw Single-flight and multi-flight stairs
  • Front, Plan and End views
  • Auto-handrailing
  • Several stringer & tread options - With auto-dimensioning of stringer for shop fabrication
  • Fully customizable with full control on the stairs design parameters, including:
    • stringer and tread sizes
    • slope
    • width
    • stair flights configuration
  • Fully customisable layers
  • Easy to use and configure

NOTE:  The stairs configuration is controlled by recognized safety constraints

Structural Ladders Utility:

The Ladder Utility will draw Side Stepping and Step Thru. ladders - Front, Plan and End views. The utility can also draw safety Cages and fabrication Detail. Auto Dimensioning is included.

Main Features:

  • Draw Step-tru and Side-step laddersNEPEAN-Weldlok Ladders software
  • Front, Plan and End views
  • Ladder detailing (with auto-dimensions)
  • Safety cages optionally added
  • Customise layers used
  • Fully customizable with full control on the all the ladder design parameters.
  • Easy to use and configure.

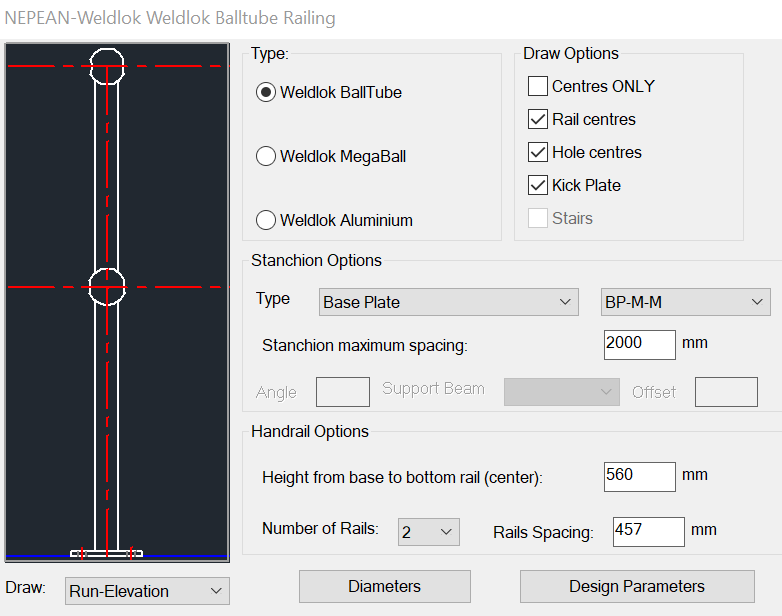

Structural Hand Railing:

  • Customizable sizes, layers & shape
  • Welded, "Monowills" and Square tube
  • Steel or Aluminium
  • 15 types of stanchion
  • Optional "kick" plates.
  • Several draw options
  • Easy to use and configure.
  • Several draw view options:
    • Run Elevation - Pick two points and handrail + stanchions is drawn
    • Run Plan - Draw an outline polyline then simply pick polyline to draw
    • Stanchion Front view
    • Stanchion End view
    • Stanchion Plan view
    • 90-deg Bend
    • Angled Bend
    • Horizontal Closure
    • Angled Closure

Structural Bracing

Fully Customizable sizes & layers. Supporting welded, welded cleat, bolted cleat or bolted straight bracing. Simple to use, draws bracing in 4 easy steps! Fixing options include Welded, welded cleat, bolted cleat or bolted straight.

Main Features:

  • Fully Customizable sizes & layers
  • Welded, welded cleat, bolted cleat or bolted straight
  • Bracing drawn in 4 easy steps:
  • Select IP 1st point
  • Select fixing member at 1st point
  • Select IP 2nd point
  • Select fixing member at 2nd point

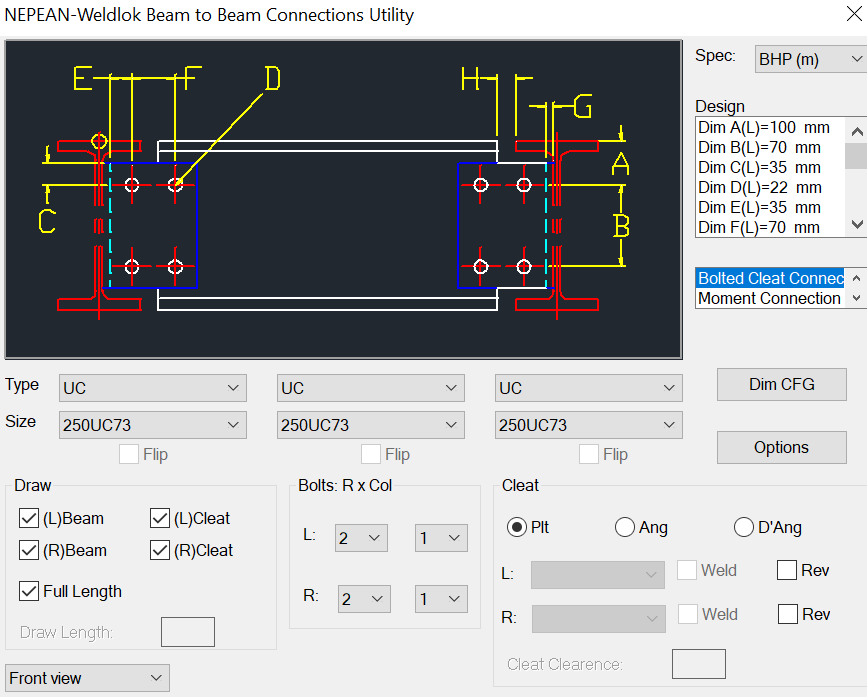

 Beam to Beam Connections:

Drawing structural steel beams is easy with NEPEAN-Weldlok. Includes several connections types: bolted & moment Plate, angle or double angle cleats. Will draw in plan or front draw views. Customizable layers & connection sizes & design w/ auto-dimensioning to fabrication details. Beam weights calculator and much more included.

Main Features:

  • Several connections types: Bolted & momentNEPEAN-Weldlok Beam to Beam connections software
  • Plate, angle or double angle cleats
  • Plan or front draw views
  • Customizable layers & connection sizes & design
  • Auto-dimensioning to fabrication details
  • Dimensioning style & options to meet most detailing requirements.
  • Beam weights calculator
  • Several draw options
  • Easy to use and configure....

Beam to Column Connections:

  • Several connections types:
  • Flexible: Angle seat
  • Flexible: Bearing pad
  • Flexible: End plate
  • Flexible: Angle cleat
  • Flexible: Web plate
  • Rigid: Welded & erect cleat
  • Rigid: Plate
  • Plan or front draw views
  • Customizable layers & connection sizes & design
  • Auto-dimensioning to fabrication details
  • Several draw options
  • Easy to use and configure....


Structural Welded Frames:

  • Bevel or Square corners.
  • Plan, End view (X) and End view (Y)
  • Plan or end draw views
  • Customizable layers & sizes
  • Auto-dimensioning to fabrication details
  • Several draw options

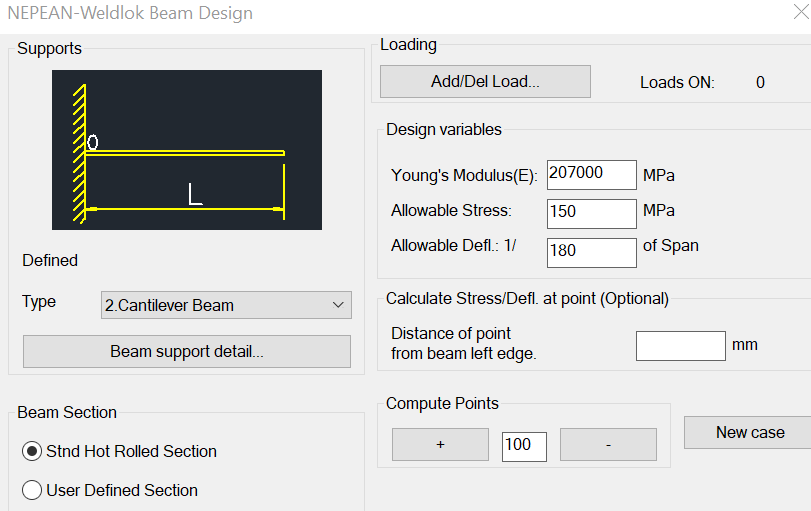

Beam Design Module

The utility is a design tool for calculating stresses and deflections for simple beam cases.NEPEAN-Weldlok beam design software

  • Beam cases Include:
  • Simply Supported
  • Cantilever
  • Propped Cantilever
  • Build-in
  • Several load cases and load combinations are supported Output:
  • Reactions at supports
  • Calculated Deflections and Stresses
  • Plot of stress and deflections
  • Printed Result
  • Minimum Steel Sections for the given load cases.
  • Several configurations & calculation options...

Welding Symbols

  • Several welding symbols Include:
  • Fillet
  • Bevel-butt
  • Vee-Butt
  • Square-Butt
  • U-Butt
  • J-Butt
  • Flare-V
  • Flare-bevel
  • Plug
  • Spot welding
  • Seam welding
  • Stud welding
  • Bead welding
  • Surface welding
  • Welding note option
  • Configurable size & layers
  • Several options & auxiliary symbols: Site, all round, leader, intermittent...

Many other modules & utilities included

Steel Shapes included:

  • Metric:
    • Australian (BHP):Hot Rolled sections, including: UB, UC, PFC, EA, UA, Welded UB & UC and RHS.
    • European (DIN):INP & IPE, HEA & HEB, UNP & UPE, LE & LU, & RHS
    • British Standard (BS): UB, UC, PFC, EA, UA, CHS & RHS
    • Canadian (CISC): W, WWF, S, M, HP, C, MC, L & HSS.
    • South African (RSA): I , H, Channels, Angles, & RHS.
    • Japanese (JIS): I , H, Channels, Angles, & RHS.
    • Indian (IS):Beams , Channels, Angles, & RHS.
    • Chinese: HW, M &N Beams, Channels, Angles, & RHS sections,
  • English:
    • US: AISC/ASTM: W & WT, S, M, HP, C, MC, L & RHS
    • Canadian (CISC):W, WWF, S, M, HP, C, MC, L & HSS.



Service & Maintenance

Note
12 months Service & Maintenance Contract (SMC) included with each NEPEAN-Weldlok license purchased
($149 value)
The NEPEAN-Weldlok SMC includes:

  • All upgrades of NEPEAN-Weldlok
  • All NEPEAN-Weldlok updates.
  • Plus: Priority support
